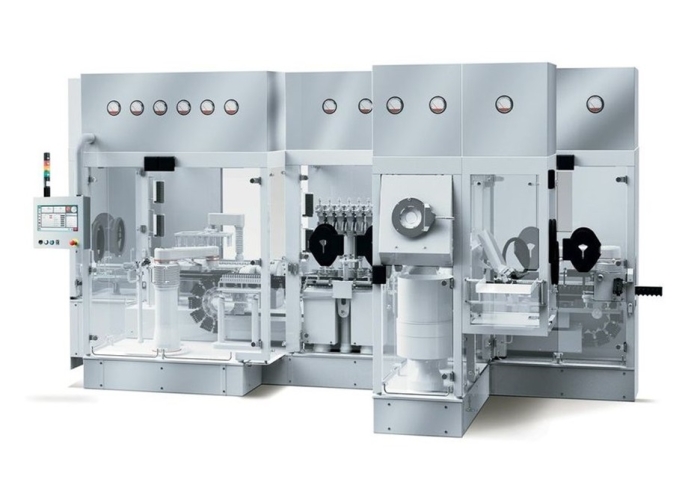

Extrafill 10 - the heart of this line
conceived to meet the highest quality requirements of the pharmaceutical
industry making life easy for the operator
It is an alternate linear filling machine
capable of running small size syringes up to 600/min (36,000/h). The high
speed is necessary for high production volumes, typical of massive vaccine
filling campaigns;
Its design allows for easy integration on
the pharma wall with a balcony style arrangement, that is one of the
milestones also for other types of fillers. The balcony style makes the Air
Flow Laminarity perfect over the product;
It guarantees 100% in-process weight
control with a sensitivity up to the 4th decimal of gram, still
maintaining the production speed at more than 300/min;
It can process Ready-to-Use Vials arranged
into Nest and Tubs with the same syringe nest size; or into single-piece
Nested-Trays;
Advanced robotization is
installed on the Extrafill 10 filling line. A brand new SCARA robot is
used for syringe or vial de-nesting and loading on the linear transport system.
A second SCARA robot is installed on the unloading area, which guarantees
no-glass-to-glass contact.
In case of vials, the diverting unit can transport vials to the alu-capping
machine which can be integrated on the pharma wall like the filler. We can
unload the vials straight in-line or through the backside, where we can install
a coding unit for printing the batch number on the alu-cap.
